10k Lumen WUXGA 300 Inches Large Venue Projector 3LCD Edge Blending

Ask Lasest Price
Brand Name :	FLYIN/OEM
Model Number :	EL-755W
Certification :	CE,FCC ,ROHS
Price :	USD 3500/Pieces
Payment Terms :	T/T, Western Union, MoneyGram,Alibaba Trade Assurance,Credite card
Supply Ability :	600 pieces Per Months
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

10k Lumen WUXGA 300 Inches Large Venue Projector 3LCD Edge Blending

10k Lumen WUXGA 300 Inches Large Venue Projector 3LCD Edge Blending

Large Venue Projector 10000 Lumens Edge Blending WUXGA 300 Inches 3LCD Projector

Product Description

3 LCD Large Venue Projector

Large Venue projectors can meet the high-brightness display environment of large halls, lecture halls, conference rooms, and exhibition halls,;

8000-10000 ANSI lumens and high brightness.

1.8x standard electric zoom lens, multi-angle displacement, free from constraints, and make space more free

Large Projection Area , high image quality, make the presentation impeccable

The engineering series also uses 3LCD high-end display chips, 8000-10000 ANSI lumens and high brightness, 10000:1 high contrast, high resolution, covering full HD, The details are more obvious, and the strong sense of immersion can experience a comfortable visual atmosphere even in a wide space.

Lens Interchangeable

The lens supports 1.8 x Motorized zoom, supports a variety of options, and can be replaced with one button, the "mirror" shows its ability, we only do more professional

WUXGA Native resolution

WUXGA resolution (1920 × 1200 pixels) can present full HD video (1920 × 1200 pixels) images. Even when projecting on a large screen, it can still maintain clear and vivid details, giving users a vibrant visual experience

10000:1 high contrast,

Full picture layering With a high contrast ratio of 10000:1, the picture is full of layers, and the details and outlines of the picture are clearly displayed on the screen. The outstanding performance makes the display in various environments more perfect and smooth.

Specification

Brightness
	Brightness (Typ) ( Ansi Lumens )	10,000
	Brightness (Min) ( Ansi Lumens )	8,000
Overall Spec
Panel	Display Panel	3*0.79“
	Display Technology	Liquid Crystal Display
	Native Resolution	WXGA(1280 x 800)
Lamp	Lamp Consumption(W)	Nomal: 480W
Lamp	Lamp Lifetime(H)	Normal:5000Hrs/ECO:6000Hrs
Projection Lens	Zoom/Focus	Powered
	Throw Ratio	100"@2.986m 1.47(wide)--2.65(tele)
	F	F:1.8~2.6
	f	f=24.0mm~43.2mm
	Zoom Ratio	1.8x optics
	Screen size	40-300 Wide(inch)
	Lens Shift V	±60% (Powered)
	Lens Shift H	±30%(Powered)
CR	Contrast Ratio(Min)	2000:1 with IRIS @ lens center
Noise	Noise(dB)	Normal:40dB@2m ECO:34dB@2m
Uniformity	Uniformity(Actual Min) -JISX6911	90%
AR	Aspect Ratio	16:9(Compatible)/4:3 (Standard)

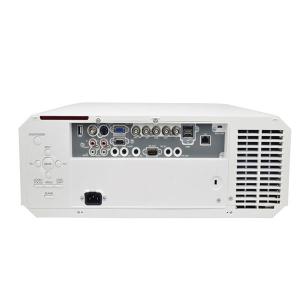

Terminal(I/O port)
Input	VGA	*1
	Audio in (mini jack,3.5mm)	*2
	BNC	*5
	Video	*1
	Audio in(L/R) --RCA	*2
	S-Video	*1
	HDMI	*2 (One is Compatible with MHL)
	USB-A	*1 1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory)
	Micro USB	*1(Display)
	RJ45	*1(Display)
Output	VGA	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	Micro USB	*1 1. For upgrade 2. Mico-USB Display
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
	HD-Base T	/
General Spec
Audio	Speaker	1*10W
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power Consumption (Normal)	590W MAX
	Power Consumption (ECO)	370W
	ECO Standby Mode Power Consumption	<0.5W
	Network standby Power Consumption	<3W
Temp.&Humidity	Operating Temp.	0℃~40℃(35~ ECO)
	Store Temp.	-20℃~~60℃
	Oparating Humidity	20%~85%
	Storage Humidity	10%~85%

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Compatible Projector Lens

One Key Change the lens

The bayonet mount system uses a touch-sensitive lens removal method, so that the lens can be easily replaced after installation. Simply unscrew and remove the anti-drop cover, press the release button, and then gently rotate the lens to easily remove it. Similarly, just gently insert and rotate the lens, you can easily complete the lens installation.

Compatible Lens As Follows

Standard Lens OL-XL7100FR

Short Throw Lens OL-XL7100SZ

Long Zoom Lens OL-XL7100LZ

Long Zoom Lens OL-XL7100TZ

Model	OL-XL7100FR	OL-XL7100SZ	OL-XL7100LZ	OL-XL7100TZ
Description	Standard Lens	Short Throw Lens	Long Throw Lens	Tele Throw zoom Lens
Zoom/Focus	x1.8/power	X1.3/ Power	x1.7/power	x1.7/power
Focus Length	24.0-43.2 mm	19.3-24.9mm	42.3-71.8mm	70.3-119.5mm
Throw Ratio	1.8-2.6:1	1.2-1.5:1	2.6-4.4:1	4.3-4.3:1
